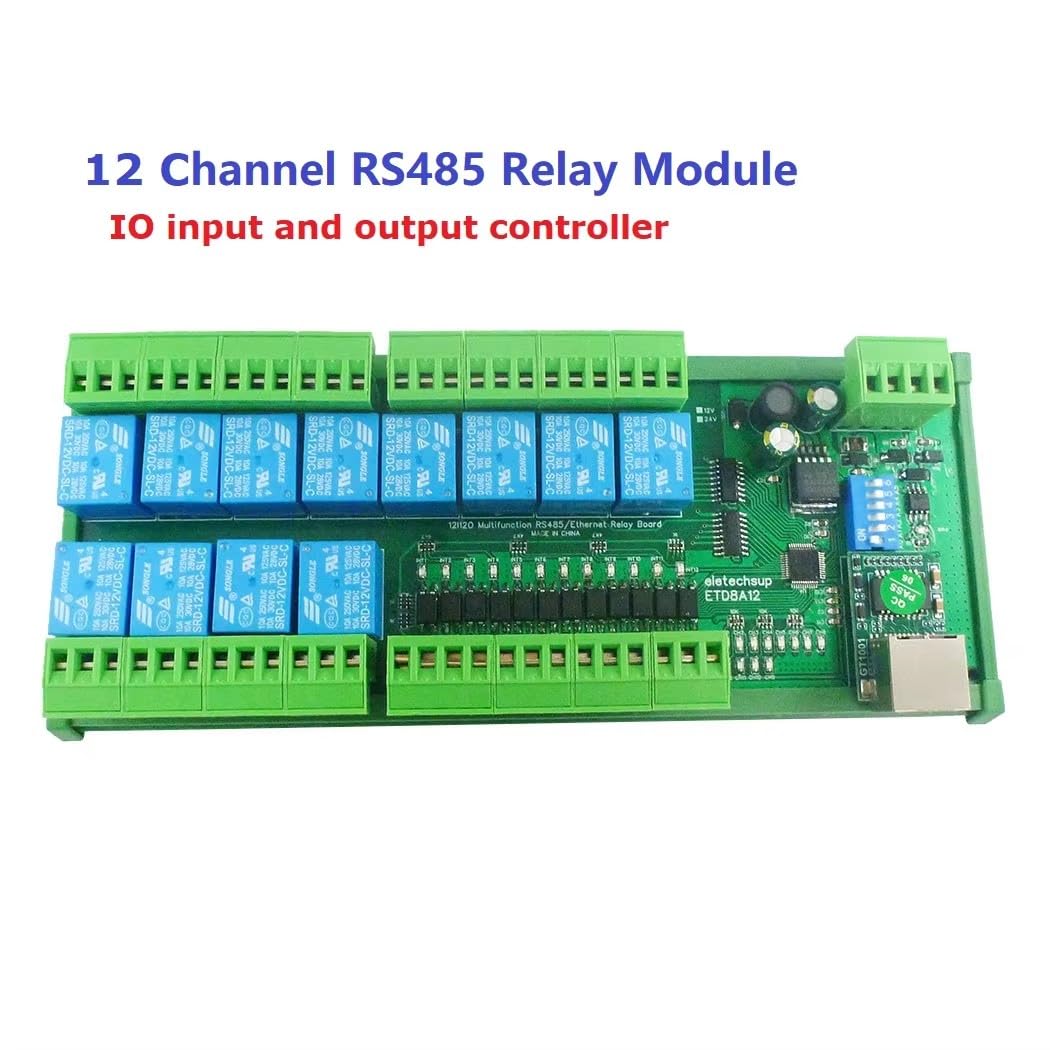

Industrial 12-Channel 2-in-1 Ethernet & RS485 Relay Module, Modbus RTU/TCP/IP Network Controller Switch Board for PLC, Motor, PTZ Camera, LED Control (24V Version)

Product Name: 2 IN1 12Ch Ethernet/RS485 Relay Module Modbus RTU TCP/IP UART Network controller Switch Board for PLC PTZ Camera Motor LEDPackage inlcuded:1PCS DC 12V/24V 12Ch DIN35 Rail RS485/Ethernet Modbus RTU Relay BoardFeatures:1: DC 12V (12V Version), DC 24V (24V Version)2: Standby current (all relays closed) 14MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 226MA3 12 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.4: ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''''Interlock between two channels'' 7 Commands5: MODBUS RTU command, Support 03 06 16 function code6: Under the ''Delay'' command ,the maximum delay is 255 seconds;7 :MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;8 :Under the MODBUS command mode, it can support up to 64 devices in parallel9 :The default baud rate is 9600BPS. The baud rate can be set by command: 2400 4800 9600 19200 38400 57600 115200BPS10: The check methods can be none parity check, even parity check and odd parity check11 :The data sending and returning time can be set, with a maximum value of 1000ms12 :Size: 200 * 72 * 22mm(Only PCB Board);220 * 88* 46mm(with Din Rail Box)13: Weight: 250.5g(Only PCB Board);382g(with Din Rail Box)14: Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDCDIN rail Box parameters:Product model: UM72Color: greenWidth: suitable for PCB board width UM72(72mm)Insulation grade: flame-retardant VO gradeBackplane length: suitable for 200 mm PCB boardsNet weight:128gInstallation: DIN35 and C45 railGlossary:NO : Relay normally open contactCOM : Relay common contactNC : Relay normally closed contactOpen : NO connection COM, NC disconnect COMClose : NO disconnect COM, NC connection COMMomentary : Enter the Momentary command, the Rreceiver Relay is Open, delay of 0.5 seconds after, Relay is Close;Toggle : Enter the Toggle command, the Rreceiver Relay is Open, Enter the Toggle command again, Relay is Close;Latched : Enter the Channel 1 Latched command, the receiver Channel 1 is Open, the Channel 2 is Close.Enter the Channel 2 Latched command the receiver Channel 2 is Open, the Channel 1 is Close.Enter the Channel 3 Latched command the receiver Channel 1 is Close, the Channel 2 is Close.Delay : Enter the Delay command, the Rreceiver Relay is Open, delay of 0-9999 seconds(MODBUS command is 0-255 seconds )after, Relay is Close;During the delay, Eter the Close command, immediately close the relayInterlock between two channels: refers to the interlock between 1-2, 3-4, 5-6, 7-8, 9-10, 11-12 channels. Input channel 1 interlock command, channel 1 relay ''open'', channel 2 relay off; press input channel 2 interlock, channel 2 relay ''open'', channel 1 ''close''; input channel 3 interlock command, channel 3 relay ''Open'', channel 4 channel relay is closed; press input channel 4 to interlock, channel 4 relay ''open'', channel 3 ''close''; and so onSlave ID: A0-A5 is the slave ID, you can choose 64 different slave ID.Under the MODBUS command mode,the slave ID must be correctcommand Description, Please refer to '' ETD8A12 12-channel RS485 IO input and output controller commamd''Typical applications:1 The dial switch (slave address) is invalid and can only control one module at a time.2.MODBUS command mode (HEX), you can control a variety of ways: Serial Hyper Terminal Control (need to manually add the CRC), Modbus Poll software control (software automatically add the CRC), PLC or MCU process control1 DC 12V control circuit,Wiring diagram below. ''LOAD'' may be camera,LED lights, fans, motors and other DC 12V equipment2 DC 1-110VAC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). ''LOAD'' may be LED lights, fans, motors Lights, fluorescent lights, solar water heaters and other DC AC equipmentSpecifications:Material: High-quality epoxy resin for durability and protectionUsage: General Purpose, suitable for a wide range of applicationsType: 2 IN1 12Ch Ethernet/RS485 Relay ModuleCategory: RelaysDesign and Style: Compact and versatile, with a DIN35 rail mount for easy installationPerformance and Property: 10A relay capacity, 12 channels, and a robust 12V/24V power supplyFeatures:**Versatile Control and Connectivity**The 2 IN1 12Ch Ethernet/RS485 Relay Module is a powerful tool for controlling various devices and systems. With its dual-protocol support, this module offers both Ethernet and RS485 connectivity, allowing for seamless integration with different networks and devices. Whether you're managing a PLC, PTZ camera, motor, or LED lighting system, this module provides the flexibility to connect and control them all. Its modular design ensures easy expansion and customization, making it a versatile addition to any control panel.**Robust and Reliable Operation**Crafted with a robust epoxy resin casing, this relay module is designed to withstand harsh environments and provide reliable performance. The single channel relay module is ideal for applications that require precise control, while the multi-channel design caters to more complex systems. The module's high-load capacity of 10A per channel ensures that it can handle a wide range of devices, from small LEDs to larger motors. The inclusion of a frame relay network and different relay rac options further enhances its adaptability to various control scenarios.**Ease of Use and Customization**The module's user-friendly interface and support for Modbus RTU TCP/IP UART Network controller Switch Board make it accessible for both novice and experienced users. With a variety of commands, including open, close, momentary, self-locking, interlock, and delay, it offers a range of control options to suit diverse applications. The module's customization options, such as the ability to set the baud rate and parity check, allow for tailored operation to match specific project requirements. Whether you're a professional in the field of PLC control panels or a DIY enthusiast, this relay module is designed to meet your needs with ease.

• DC 12V (12V Version), DC 24V (24V Version)
• Standby current (all relays closed) 14MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 226MA

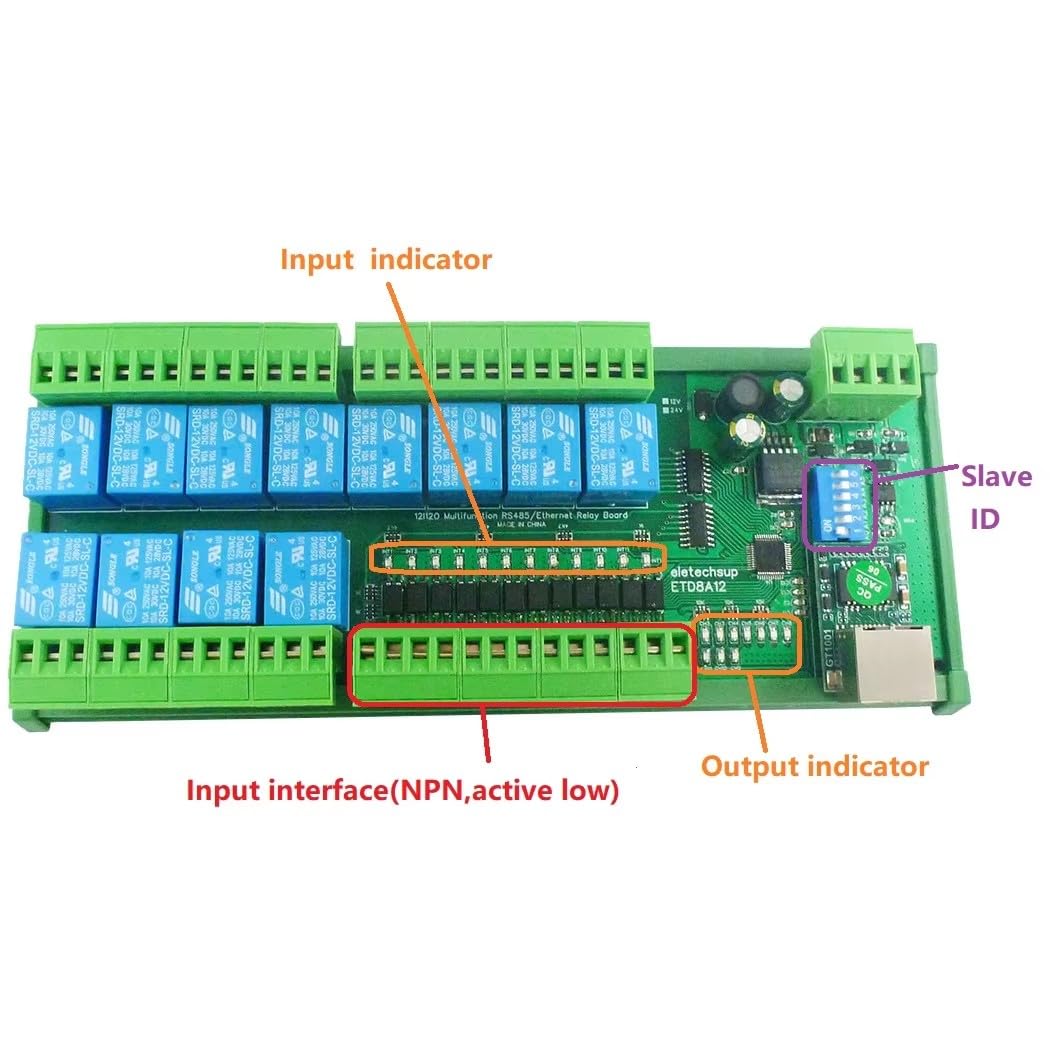

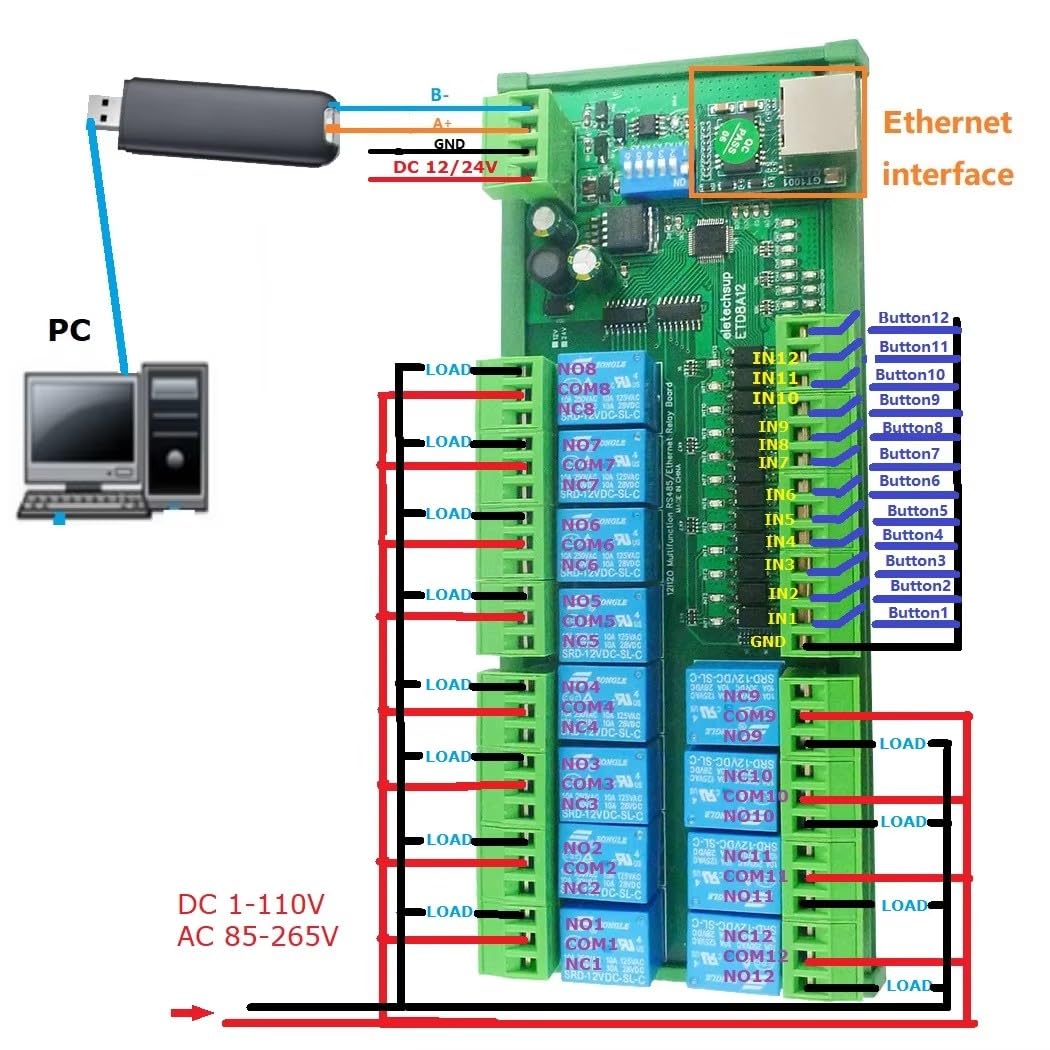

• 12 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
• ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' ''''Interlock between two channels'' 7 Commands
• Under the ''Delay'' command ,the maximum delay is 255 seconds;
• The default baud rate is 9600BPS. The baud rate can be set by command: 2400 4800 9600 19200 38400 57600 115200BPS
• The data sending and returning time can be set, with a maximum value of 1000ms
